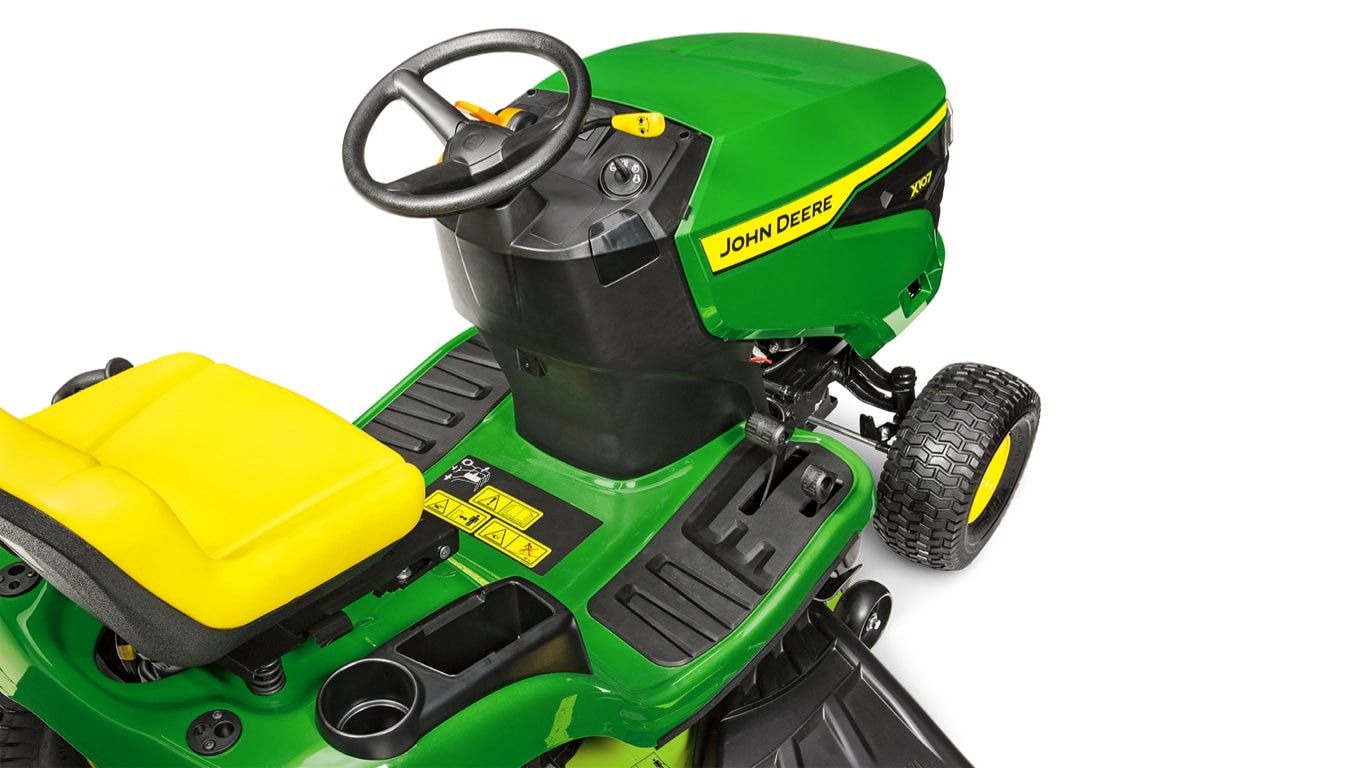

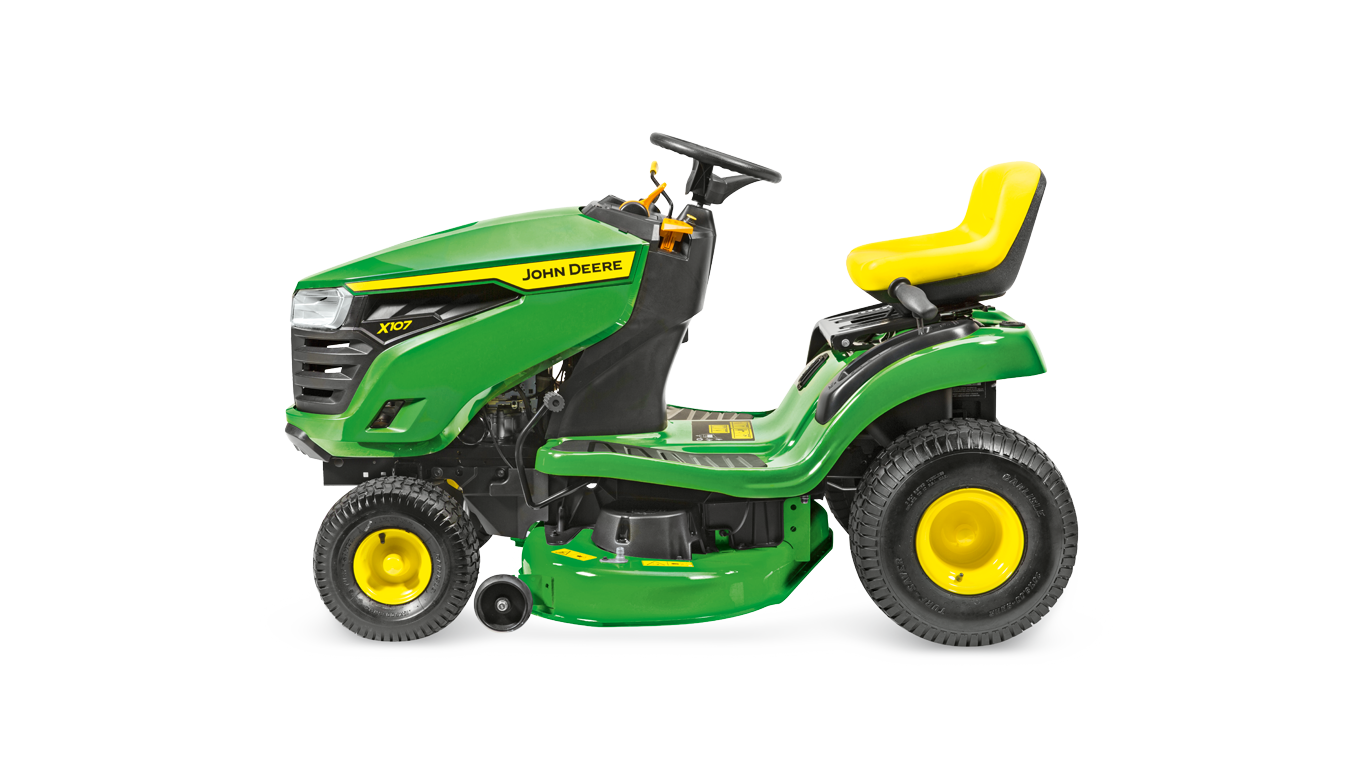

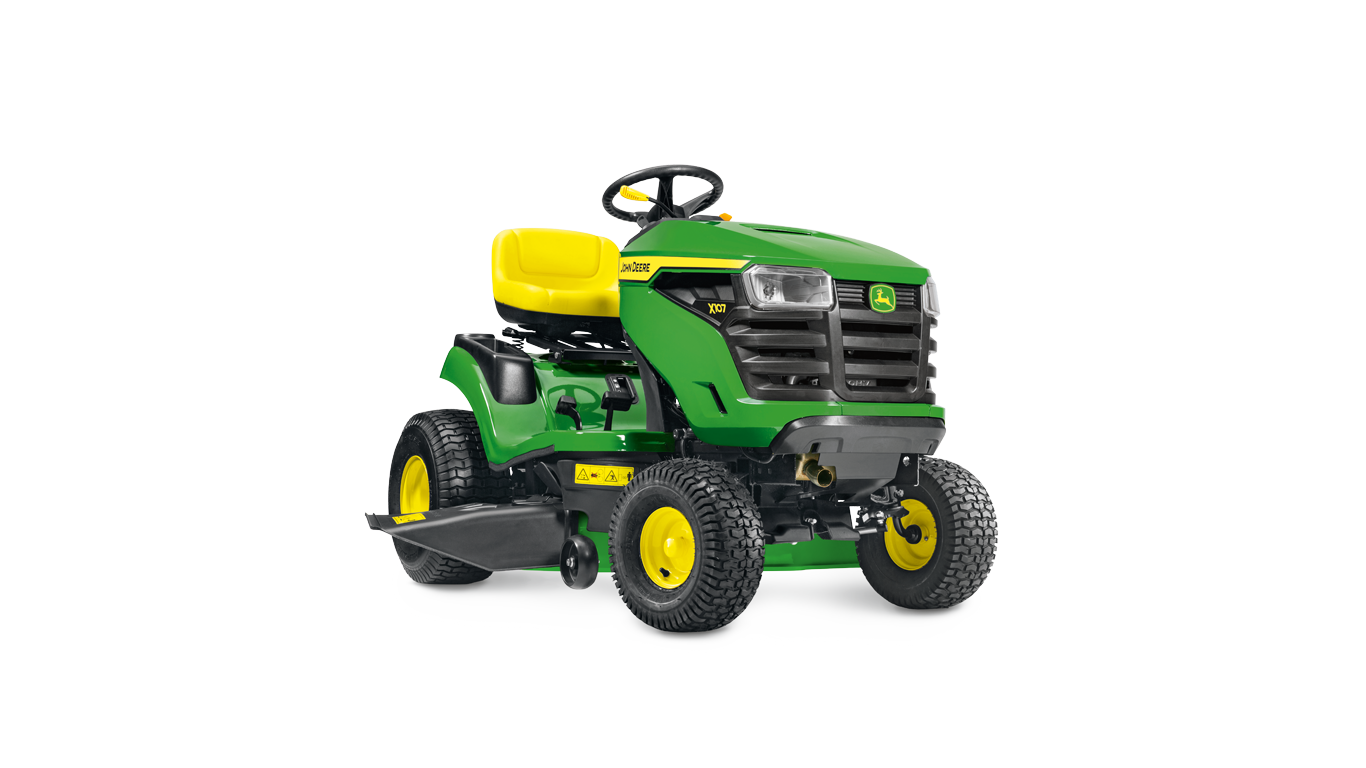

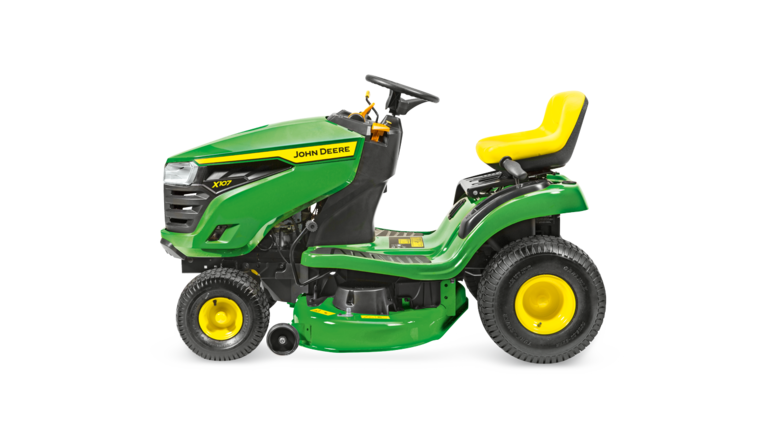

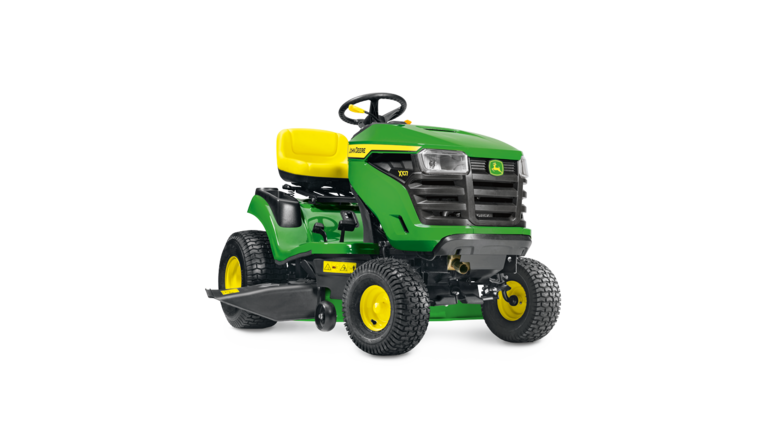

X107Udstyr til plænetraktorer

Spark arrester

Spark arrester

NOTE: Spark arrester design and appearance vary depending on the muffler outlet. Photos are representative of some spark arrester designs.

Allows tractor to meet restrictions imposed by certain areas.

X500 Series Tractor moving snow with the front blade

This durable blade serves as a perfect solution for snow removal and other materials.

It is very easy to mount on the tractor which facilitates all year-round usage through the different seasons. To use it, the operator simply pushes a lever from the seat and the blade lowers to the ground. When the task is complete, pulling back the lever will raise it.

Front blade angled to the left

The working angle can be changed with a lever from the tractor. This will be especially appreciated in tighter areas when frequently changing direction between left and right.

Clean to the edge with the wide blade

Clearing off snow

The blade is wider than the tractor to ensure the tractor has good traction on the cleared path and does not compact snow. Even with an angled blade, the operator can clean up to the edge of walls and other obstacles for best results.

Resist impacts and stay comfortable even when hitting obstacles hidden under snow

Demonstration of the unique safety joint: the tractor is slowed down after the impact yet can move enough to reduce the shock on the operator. The blade moves away from the obstacle by moving up.

Function of a traditional blade (upper line) and the unique safety joint (lower line).

1. Pivot point
2. Hard obstacle
3. Snow

Many front blades available in the market tilt around a pivoting point close to the ground (see 1.1). When potentially contacting an obstacle (see 1.2), the pivoting blade can barely move at all, increasing impact on the blade, tractor, and operator even more (1.3).

The unique joint solution of this blade is smarter by pivoting around a higher spot (2.1). It avoids a harsh impact as the colliding blade edge moves clearly to the rear (2.2), allowing the tractor to slow down more smoothly. Also, the blade will move up if too much snow is present – and even continues to clear off the snow. Once the hard object is overcome, the spring pushes the blade back to the original position. This all results in more comfort of the operator, better uptime of the blade and tractor together with cost effective snow removal without backing up and rehitting the obstacle attempting to clear snow on it.

Attaching to the tractor in three seconds

Three simple steps to mount the blade

To attach the blade to the tractor, simply raise it from ground; hook it into the quick-hitch and lock it. Although it can stay on, taking the mower deck off and using rear wheel weights on the tractor is recommended. For snow applications, snow chains are suggested. Both the weights and the chains are available through John Deere Parts.

Compatibility and required mounting hardware

Quick-hitch

Tractor-specific mounting frame

A John Deere dealer can identify which models are compatible with this broom and order the required mounting hardware.

Further blades, brooms, and snow throwers

Broom and blade with quick-hitch

The following chart shows the available options for John Deere Riding Lawn Equipment and suggests which solution might be the best in each case. The entire description above applies to the blade with 125-cm (49-in.) quick-hitch. If the tractor is equipped with driveline and corresponding quick-hitch, a tractor with this quick-hitch can carry either the blade or the 120-cm (47-in.) broom.

Front broom with debris catcher on X300 Series Tractor

This broom serves as perfect solution for snow and dirt removal. It is very easy to mount and comes with a debris catcher box and multipurpose brush.

To engage, the operator simply pushes a lever from the seat and the broom lowers to the ground while starting to spin. When the job is complete, pulling back the lever will stop the broom and raise it from ground.

Front broom angled to the left

From the tractor, the working angle can be changed just by pulling or pushing the (left) lever. This is particularly beneficial in tighter areas when the frequency of changing between working to left and right is higher.

Use the debris catcher for dirt removal

Every broom is shipped with a debris catcher for when collection is required. An upper and a lower rubber lip minimize dust accumulation. To empty, tilt in from its mounted position or take it off and push on its wheels to empty the debris elsewhere.

Optimize cleaning results by adjusting ground pressure

To achieve optimal performance, the ground pressure can be increased by simply turning a knob on top of the broom. Lowering ground pressure will reduce friction and increase lifetime of the broom.

Clean to the edge and on uneven terrain

The wide broom and the central drive system clean to the very edge of walls and other obstacles. Cleaning uneven surfaces is easy and efficient: The brush itself is mounted with an oscillating bearing to compensate undulations.

Easy transport and storage

The air-filled caster wheel supports the broom and also allows easy moving and storing of the broom when not in use. The rubber boot over the wheel’s king pin protects it from thrown up dirt.

Attaching to the tractor in three seconds

Lift, settle, and lock the broom

To attach the broom to the tractor, simply raise it from ground, hook it into the quick-hitch and lock by pushing the handle down. Using rear wheel weights on the tractor is recommended. For snow applications, snow chains are suggested. In some conditions it may be recommended to take off the mower deck to keep enough clearance between tire chains and deck. Both the weights and the chains are available through John Deere Parts.

Compatibility and required mounting hardware

Quick-hitch with lift lever and (tractor specific) mounting frame and driveline

A John Deere dealer can identify which models are compatible with this broom and order the required mounting hardware.

Further blades, brooms and snow throwers

Broom and blade with quick-hitch

The following chart shows available options for the John Deere Riding Lawn Equipment and suggests which solution might be the best in each case. The entire description above applies to the broom with quick-hitch 120 cm (47 in.). The 125-cm (49-in.) blade can be mounted on the same hitch as the broom and might be an excellent response to stronger snowfall.

Driveline parts

Provides the parts to use a rotary broom.

Compatibility Information

SAB10044

For X125.

SAB10045

For X165.

SAB10040

For X115R.

SAB10041

For X135R.

SAB10042

For X155R.

Increases machine versatility.

Compatibility Information

SAB00720

For X120, X125, X135R, X140, X145, X155R, X165, X300, X300R, X304, X305R, X320, X534, and X540 Tractors.

Quick hitch

The front quick hitch with drive increases tractor versatility.

Compatibility Information

SAB00922

For LR135, LR175, X110, X120, X125, X130R, X135R, X140, X145, X155R, X165, X300, X300R, X304, X305R, X320, X534, and X540 Tractors. Required for SAB00726 rotary broom.

117-cm (46-in.) Front Blade

117-cm (46-in.) Front Blade used on loose material

The front blade is excellent for pushing light snow or other loose material.

The blade is constructed for good performance and long life:

• Blade surface is curved to roll rather than push material, which requires less power and increased blade capacity.
• Bolt-on, replaceable cutting edge takes most of the wear to greatly extend the useful life of the blade.

For operator convenience, the blade comes with standard equipment for controlling it from the tractor's seat:

• Blade can be angled left, right, or used in the straight-ahead position.

Full working range

Full working range

The 117-cm (46-in.) blade can be operated up to 16.5 cm (6.5 in.) above ground level.

Floating action is designed into the lift linkage, so the blade is free to follow the contour of the ground.

The lift-linkage design makes raising the blade easy.

Controlled from tractor seat

Operator blade control

For operator convenience, the blade comes with angling and lift components as standard equipment so it can be controlled from the tractor seat.

Front blade lift and angling components are included as standard equipment:

• Blade can be angled left, right, or used in the straight-ahead position.

Specifications

Tractor compatibility and requirements

The 117-cm (46-in.) Front Blade is compatible with:

• X105, X106, X125, X126, X165, X166, X115R, X116R, X135R, X146R, X155R and X166R Tractors

Requirements and/or recommendations:

• Rear weights and tire chains are recommended for additional traction.
• Mower deck left, front, and right shields must be removed.
• If the tractor is equipped with a front bumper, it must be removed.

NOTE: Tractor models shown in the photos above are U.S. versions.

7P Poly Utility Cart

Every John Deere customer who owns a riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.

Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak™ or ZTrak™ mower not to exceed 250 lb (113 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck.

7P Poly Utility Cart

• Cart has a premium molded, high-density polyethylene box construction.
• Compression molding process allows polyethyl­ene to be the optimum thickness in all areas for superior strength and durability.
• Polyethylene body will not rust or dent; it stays looking new longer.
• 0.75-in. (2-cm) x 2-in. (5-cm) stake pockets are molded in to make the addition of side extensions easy.
• Two vertical 0.75-in. (2-cm) molded channels on each side allow easy use of dividers to separate the box into two or three compartments.
• Ribs in the box bottom add strength and prevent the shovel from hitting bolts when emptying the cart.
• Sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
• Styling is compatible with other John Deere equipment.
• Pneumatic tires provide turf tread for good flotation, shock absorption, and minimal rolling resistance.

Wheels

17P Utility Cart wheel shown

Wheels are mounted on a solid, one-piece axle for durability.

Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.

The pneumatic tires offer the following:

• Good flotation
• Minimal rolling resistance
• Shock absorption

Sloped tailgate

Sloped tailgate for easy emptying

A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.

Tractor hitch

Spring-pin tractor hitch

A large-diameter hitch pin provides plenty of strength:

• Fast, easy attachment to the tractor hitch
• Spring pin to ensure the pin stays in place

Tilt latch

Tilt latch

An easy-to-use spring-loaded dump latch allows tilting the box for easier unloading. Steep dump angle makes emptying the cart easier.

Specifications

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower not to exceed 113 kg (250 lb).
**High-density polyethylene is compression molded for optimum thickness in all areas and maximum durability.

Oilite is a trademark of Beemer Precision Incorporated.

Ordering information

Please contact your local John Deere dealer for availability and pricing information.

7P Poly Utility Cart
Order number: MCZLP2193500

Utility cart

Haul a variety of materials. Welded steel box construction.

Compatibility Information

BM24601

For X125, X130R, X135R, X140, X145, X155R, X165, X300, X300R, X304, X305R, X320, X740, X748, X749, X750, X754, and X758 Tractors. Must order in multiples of two. The loaded weight of the cart should never exceed the weight of the tractor plus the operator.

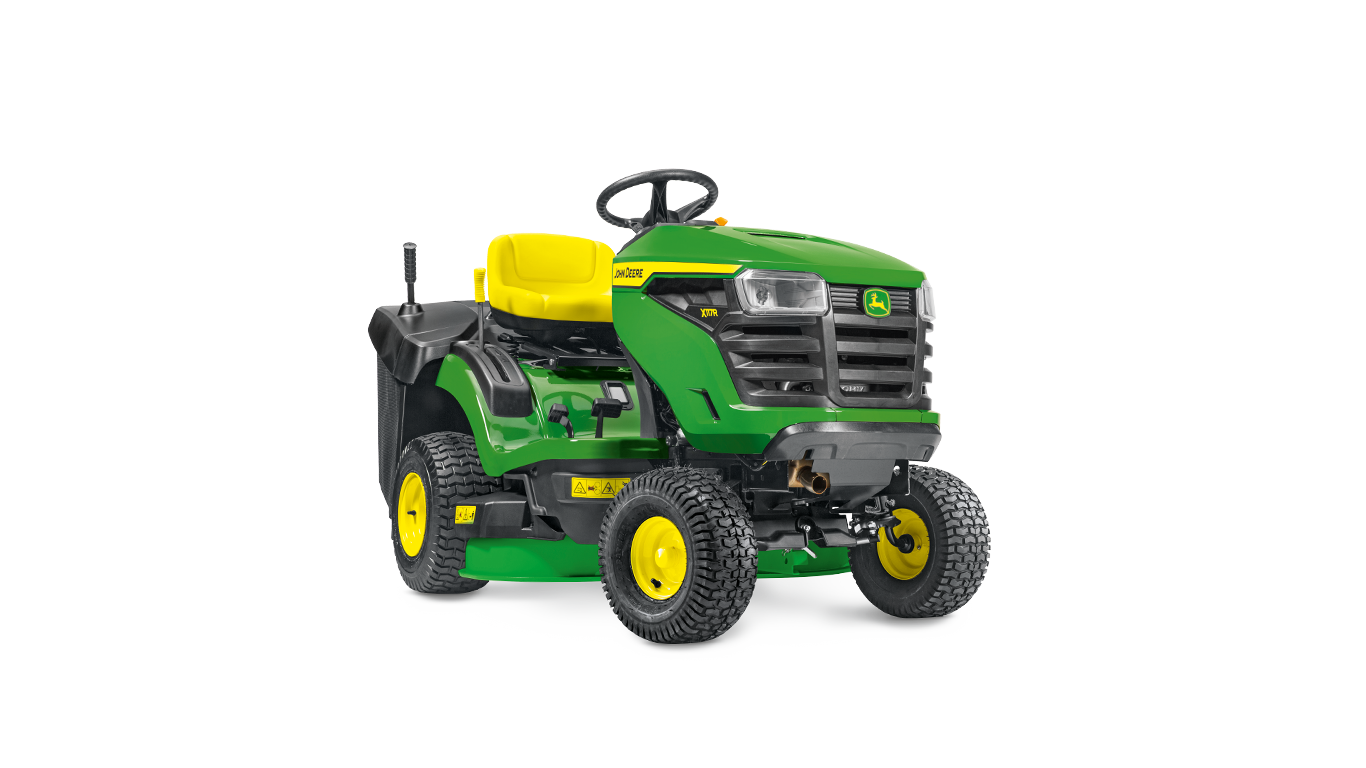

230-L (6.5-bu) bagger

This system provides an efficient means of collecting grass clippings and leaves. The hopper design provides great bagging performance, cleaner operation, and easy-to-empty bags.

Benefits:

• Two durable bags
• Generous 230 L (6.5 bu) capacity
• Bags lift out for emptying
• Easy to reinstall bags
• Efficient lower chute (rear bagger)
• Chute provides smoother flow of material to reduce chance of plugging
• Standard mower blades can be used for bagging.
• Air exhaust duct directs air from hopper backand toward the ground for clean operation
• Convenient bungee-cord fastener
• Makes opening and closing the hopper easy
• No tools installation
• 230 L (6.5 bu) material collection systems are easy to install and remove
• No tools are required after initial installation
• Pins and spring clips hold hopper and chute in place
• Nothing is left to interfere with other attachments when hopper and chute are removed
• Loose-knit bags
• Allow more air to flow through
• Provide complete bag filling in wet and heavy grass conditions

Tractor compatibility and requirements

The 230-L (6.5-bu) hopper and chute, X100 Series with 107-cm (42-in.) Mower Deck is for use with:

• X105, X106, X110, X120, X125, X126, and X145 Tractors with 42-in. (107-cm) Mower Deck

Requirements and/or recommendations:

• Front ballast is recommended when bagging, especially on hills or inclines.
• Use of rear tow-behind attachments that could come in contact with the hopper assembly is not recommended when the hopper assembly is installed.
• Special mower blades are not required.

LG278 home maintenance kit

Typical home maintenance kit

Home maintenance kits are a handy and convenient way for dealers to supply a customer with the maintenance-interval parts as specified in their operator's manual.

The LG278 home maintenance kit includes the following:

Front bumper

The front bumper is an optional attachment for lawn tractors.

Benefits include:

• Additional front-end protection
• A more aggressive look for the tractor

Compatibility Information

BG20944

This bumper fits 2006 and later 100 Series Tractors.

StarLock™ blade design

107-cm (42-in.) Edge Xtra Mower Starlock blade mounting

StarLock™ blade design

107-cm (42-in.) Edge Xtra Mower Starlock blade mounting

StarLock™ blade design

107-cm (42-in.) Edge Xtra Mower Starlock blade mounting

107-cm (42-in.) Mower Deck

A complete mower deck can be ordered for replacement, if required. Incomplete decks are also available through the John Deere Parts system. These decks include the shell, discharge chute, and decals.

The 107-cm (42-in.) Mower Deck comes with two medium-lift blades for normal cutting and bagging conditions.

107-cm (42-in.) Mower Deck

A complete mower deck can be ordered for replacement, if required.

The 107-cm (42-in.) Mower Deck comes with two medium-lift blades for normal cutting and bagging conditions.

NOTE: When replacing a model year 2015 or older mower deck, also order GY22387 power take-off (PTO) cable.

Front blowout baffle

The front blowout baffle kit is for the 107-cm (42-in.) Convertible Mower and the 107-cm (42-in.) Edge™ Xtra Mower. It will reduce the amount of blowout when bagging leaves or other dry material.

Mower deck leveling gauge

Leveling gauge allows quick and accurate mower deck leveling and cutting height adjustment.

Can be used for:

• Lawn tractors
• Lawn and garden tractors
• Riding mowers
• Front mowers
• Commercial walk-behind mowers
• Zero-turn-radius mowers

107-cm (42-in.) mulch cover

The mulch cover is available as an option.

107-cm (42-in.) mulching attachment (shown on X300 Mower)

The mulching attachment for the 107-cm (42-in.) mower provides excellent performance. This is a high-performance mulching attachment that includes a mulch plug and special mulching blades.

Features include:

• The blades included are designed to work with the StarLock™ blade mounting system used on 107-cm (42-in.) mower for 100 Series and X300 Select Series™ Tractors and also for the 107-cm (42-in.) mower without the StarLock system.
• The special mulching blades included can also be used for side discharging, although the overall cut quality may decline slightly.

NOTE: The mulch plug included in the BM21816 mulch kit can also be used on 107-cm (42-in.) mowers with L100 Series Tractors, but the special mulching blades included will not fit the mower spindle; the standard mower blades are designed for mulching and can continue to be used with the mulch plug in place.

Compatibility Information

BM21816

For 100 Series and X300 Series Tractors and EZtrak™ Mowers.

19-kg (42-lb) Quik-Tatch weight

The 19-kg (42-lb) Quik-Tatch can be used to counterbalance a heavy front or rear attachment and/or provide greater stability, especially when operating on hills.

This weight is constructed of cast iron and weighs approximately 19-kg (42-lb).

Some vehicles have built-in front and/or rear weight brackets to hang the weights on; others require a weight bracket that must be ordered separately.

X400/X500 Heavy­Duty Garden Tractors and X700 Series Tractors require the following parts when weights are installed on the front of the tractor:

• One M147986 weight retaining rod (Parts)
• Two M40461 spring clip (Parts)

Rear weight bracket (BG20022 shown)

Rear weight bracket shown with two 19.1-kg (42-lb) weights

The rear weight bracket provides a tractor-mounted bracket for hanging two weights:

• BG20627 replaces BG20022 and BG20499 rear weight brackets.
• Clearance is provided for the carbon canister if the tractor has one.
• BG20627 can be used in all applications where BG20022 and BG20499 were used.

Compatibility Information

BG20627

Required for BG20029 Quik-Tatch weights or R66949 rear suitcase weights.

15.4-kg (34-lb) front wheel weight

A durable cast-iron weight can be mounted to each front wheel.

These weights are recommended for use when operating on slopes, especially when the tractor is equipped with a rear grass bagger or other rear-mounted equipment.

Each weight requires BM17978 mounting hardware.

Compatibility Information

BM17962

Requires BM17978 mounting hardware.

15.4-kg (34-lb) front wheel weight

A durable cast-iron weight can be mounted to each front wheel.

These weights are recommended for use when operating on slopes, especially when the tractor is equipped with a rear grass bagger or other rear-mounted equipment.

Each weight requires BM17978 mounting hardware.

Compatibility Information

BUC10724

Requires BM17978 mounting hardware.

Tire chain with optional wheel weights on X728

One pair of chains is included in each bundle.

Chains are recommended for extra traction when using attachments such as a snow blower or front blade.

Compatibility Information

TY15959

For X125 and X145 Tractors.

TY16200

For X300, X300R, X304, X305R, X310, and X320 Tractors.

TY25229

For X165 Tractor.

TY24327

For X320 Tractor.

TY26227

For X534 Tractor.

TY15958

For X748, X750, and X950R Tractors.
