X147RUdstyr til plænetraktorer

NOTE: Spark arrester design and appearance vary depending on the muffler outlet. Photos are representative of some spark arrester designs.

Allows tractor to meet restrictions imposed by certain areas.

This durable blade serves as a perfect solution for snow removal and other materials.



It is very easy to mount on the tractor which facilitates all year-round usage through the different seasons. To use it, the operator simply pushes a lever from the seat and the blade lowers to the ground. When the task is complete, pulling back the lever will raise it.

The working angle can be changed with a lever from the tractor. This will be especially appreciated in tighter areas when frequently changing direction between left and right.

Clean to the edge with the wide blade

The blade is wider than the tractor to ensure the tractor has good traction on the cleared path and does not compact snow. Even with an angled blade, the operator can clean up to the edge of walls and other obstacles for best results.

Resist impacts and stay comfortable even when hitting obstacles hidden under snow

Demonstration of the unique safety joint: the tractor is slowed down after the impact yet can move enough to reduce the shock on the operator. The blade moves away from the obstacle by moving up.

Function of a traditional blade (upper line) and the unique safety joint (lower line).

1. Pivot point
2. Hard obstacle
3. Snow

Many front blades available in the market tilt around a pivoting point close to the ground (see 1.1). When potentially contacting an obstacle (see 1.2), the pivoting blade can barely move at all, increasing impact on the blade, tractor, and operator even more (1.3).



The unique joint solution of this blade is smarter by pivoting around a higher spot (2.1). It avoids a harsh impact as the colliding blade edge moves clearly to the rear (2.2), allowing the tractor to slow down more smoothly. Also, the blade will move up if too much snow is present – and even continues to clear off the snow. Once the hard object is overcome, the spring pushes the blade back to the original position. This all results in more comfort of the operator, better uptime of the blade and tractor together with cost effective snow removal without backing up and rehitting the obstacle attempting to clear snow on it.

Attaching to the tractor in three seconds

To attach the blade to the tractor, simply raise it from ground; hook it into the quick-hitch and lock it. Although it can stay on, taking the mower deck off and using rear wheel weights on the tractor is recommended. For snow applications, snow chains are suggested. Both the weights and the chains are available through John Deere Parts.

Compatibility and required mounting hardware

A John Deere dealer can identify which models are compatible with this broom and order the required mounting hardware.

Further blades, brooms, and snow throwers

The following chart shows the available options for John Deere Riding Lawn Equipment and suggests which solution might be the best in each case. The entire description above applies to the blade with 125-cm (49-in.) quick-hitch. If the tractor is equipped with driveline and corresponding quick-hitch, a tractor with this quick-hitch can carry either the blade or the 120-cm (47-in.) broom.

	Blade -117cm (46 in.) for X100s -44-in. (112-cm) for X300s -48-in. (122-cm) for X500s	Blade with quick-hitch 125 cm (49 in.)	Broom with quick-hitch 120 cm (47 in.)	Snow blower -44 in. (112 cm) for X100s -44 in. (112 cm) for X300s -47 in. (119 cm) for X500s
Cleaning sideways			x
Moving light snow, mulch	x	x	x
Moving heavy snow	x	(x)		x
Notes	Bolts on tractor. Must remove mower deck to use.	Uses quick-hitch	Uses quick-hitch

This broom serves as perfect solution for snow and dirt removal. It is very easy to mount and comes with a debris catcher box and multipurpose brush.



To engage, the operator simply pushes a lever from the seat and the broom lowers to the ground while starting to spin. When the job is complete, pulling back the lever will stop the broom and raise it from ground.

From the tractor, the working angle can be changed just by pulling or pushing the (left) lever. This is particularly beneficial in tighter areas when the frequency of changing between working to left and right is higher.

Use the debris catcher for dirt removal

Every broom is shipped with a debris catcher for when collection is required. An upper and a lower rubber lip minimize dust accumulation. To empty, tilt in from its mounted position or take it off and push on its wheels to empty the debris elsewhere.

Optimize cleaning results by adjusting ground pressure

To achieve optimal performance, the ground pressure can be increased by simply turning a knob on top of the broom. Lowering ground pressure will reduce friction and increase lifetime of the broom.

Clean to the edge and on uneven terrain

The wide broom and the central drive system clean to the very edge of walls and other obstacles. Cleaning uneven surfaces is easy and efficient: The brush itself is mounted with an oscillating bearing to compensate undulations.

Easy transport and storage

The air-filled caster wheel supports the broom and also allows easy moving and storing of the broom when not in use. The rubber boot over the wheel’s king pin protects it from thrown up dirt.

Attaching to the tractor in three seconds

To attach the broom to the tractor, simply raise it from ground, hook it into the quick-hitch and lock by pushing the handle down. Using rear wheel weights on the tractor is recommended. For snow applications, snow chains are suggested. In some conditions it may be recommended to take off the mower deck to keep enough clearance between tire chains and deck. Both the weights and the chains are available through John Deere Parts.

Compatibility and required mounting hardware

A John Deere dealer can identify which models are compatible with this broom and order the required mounting hardware.

Further blades, brooms and snow throwers

The following chart shows available options for the John Deere Riding Lawn Equipment and suggests which solution might be the best in each case. The entire description above applies to the broom with quick-hitch 120 cm (47 in.). The 125-cm (49-in.) blade can be mounted on the same hitch as the broom and might be an excellent response to stronger snowfall.

	Blade -117cm (46 in.) for X100s -44-in. (112-cm) for X300s -48-in. (122-cm) for X500s	Blade with quick-hitch 125 cm (49 in.)	Broom with quick-hitch 120 cm (47 in.)	Snow blower -44 in. (112 cm) for X100s -44 in. (112 cm) for X300s -47 in. (119 cm) for X500s
Cleaning sideways			x
Moving light snow, mulch	x	x	x
Moving heavy snow	x	(x)		x
Notes	Bolts on tractor. Must remove mower deck to use.	Uses quick-hitch	Uses quick-hitch

Provides the parts to use a rotary broom.

Compatibility Information

SAB10044

For X125.

SAB10045

For X165.

SAB10040

For X115R.

SAB10041

For X135R.

SAB10042

For X155R.

Increases machine versatility.

Compatibility Information



SAB00720

For X120, X125, X135R, X140, X145, X155R, X165, X300, X300R, X304, X305R, X320, X534, and X540 Tractors.

The front quick hitch with drive increases tractor versatility.

Compatibility Information



SAB00922

For LR135, LR175, X110, X120, X125, X130R, X135R, X140, X145, X155R, X165, X300, X300R, X304, X305R, X320, X534, and X540 Tractors. Required for SAB00726 rotary broom.

The front blade is excellent for pushing light snow or other loose material.

The blade is constructed for good performance and long life:

• Blade surface is curved to roll rather than push material, which requires less power and increased blade capacity.
• Bolt-on, replaceable cutting edge takes most of the wear to greatly extend the useful life of the blade.

For operator convenience, the blade comes with standard equipment for controlling it from the tractor's seat:

• Blade can be angled left, right, or used in the straight-ahead position.

Full working range

The 117-cm (46-in.) blade can be operated up to 16.5 cm (6.5 in.) above ground level.

Floating action is designed into the lift linkage, so the blade is free to follow the contour of the ground.

The lift-linkage design makes raising the blade easy.

Controlled from tractor seat

For operator convenience, the blade comes with angling and lift components as standard equipment so it can be controlled from the tractor seat.

Front blade lift and angling components are included as standard equipment:

• Blade can be angled left, right, or used in the straight-ahead position.



Specifications

Overall width	117 cm (46 in.)
Overall height	36 cm (14 in.)
Clearing width	117 cm (46 in.)
Angling positions	Three
Lift height	17 cm (6.5 in.)
Net weight	33.1 kg (73 lb)

Tractor compatibility and requirements

The 117-cm (46-in.) Front Blade is compatible with:

• X105, X106, X125, X126, X165, X166, X115R, X116R, X135R, X146R, X155R and X166R Tractors

Requirements and/or recommendations:

• Rear weights and tire chains are recommended for additional traction.
• Mower deck left, front, and right shields must be removed.
• If the tractor is equipped with a front bumper, it must be removed.

NOTE: Tractor models shown in the photos above are U.S. versions.

Every John Deere customer who owns a riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.

Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak™ or ZTrak™ mower not to exceed 250 lb (113 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck.

• Cart has a premium molded, high-density polyethylene box construction.
• Compression molding process allows polyethyl­ene to be the optimum thickness in all areas for superior strength and durability.
• Polyethylene body will not rust or dent; it stays looking new longer.
• 0.75-in. (2-cm) x 2-in. (5-cm) stake pockets are molded in to make the addition of side extensions easy.
• Two vertical 0.75-in. (2-cm) molded channels on each side allow easy use of dividers to separate the box into two or three compartments.
• Ribs in the box bottom add strength and prevent the shovel from hitting bolts when emptying the cart.
• Sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
• Styling is compatible with other John Deere equipment.
• Pneumatic tires provide turf tread for good flotation, shock absorption, and minimal rolling resistance.

Wheels

Wheels are mounted on a solid, one-piece axle for durability.

Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.

The pneumatic tires offer the following:

• Good flotation
• Minimal rolling resistance
• Shock absorption

Sloped tailgate

A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.

Tractor hitch

A large-diameter hitch pin provides plenty of strength:

• Fast, easy attachment to the tractor hitch
• Spring pin to ensure the pin stays in place

Tilt latch

An easy-to-use spring-loaded dump latch allows tilting the box for easier unloading. Steep dump angle makes emptying the cart easier.

Specifications



Box capacity
Heaped, m3 (cu ft)	7 (0.20)
Struck, m3 (cu ft)	5.6 (0.16)
Maximum load, kg (lb)	450* (204)
Box dimensions
Width, cm (in.)	84 (33)
Length, cm (in.)	114 (45)
Depth, cm (in.)	27 (10.5)
Box construction	Molded
Material	High-density polyethylene (HDPE)**
Tailgate	None, sloped
Pneumatic tires	2 ply
Size	13x4-6
Tread design	Turf
Recommended inflation pressure	207 kPa (30 psi)
Wheel bearings	Iron/Oilite®
Grease fittings on wheels	Yes
Axle diameter, cm (in.)	1.905 (0.750)
Ground clearance, cm (in.)	14.3 (5.62)
Width, overall, cm (in.)	86.4 (34)
Hitch pin	Pin/spring clip
Dump angles, degrees	55
Maximum tongue weight, kg (lb)	25 (55)
Shipping weight with carton, kg (lb)	31 (68)
Net weight, kg (lb)	29 (65)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower not to exceed 113 kg (250 lb).
**High-density polyethylene is compression molded for optimum thickness in all areas and maximum durability.

Oilite is a trademark of Beemer Precision Incorporated.

Ordering information

Please contact your local John Deere dealer for availability and pricing information.

7P Poly Utility Cart
Order number: MCZLP2193500

Haul a variety of materials. Welded steel box construction.

Compatibility Information



BM24601

For X125, X130R, X135R, X140, X145, X155R, X165, X300, X300R, X304, X305R, X320, X740, X748, X749, X750, X754, and X758 Tractors. Must order in multiples of two. The loaded weight of the cart should never exceed the weight of the tractor plus the operator.

Home maintenance kits are a handy and convenient way for dealers to supply a customer with the maintenance-interval parts as specified in their operator's manual.

The LG276 home maintenance kit includes the following:

Quantity	Description
1	Engine oil filter
2	Engine oil quart
1	Fuel filter
1	Air filter cartridge
2	Spark plugs

The rear deflector installs in place of the collection hopper to discharge on the ground.

Compatibility Information

BG20822

For X115R, X135R, and X155R.

The storage compartment cover is standard equipment on some tractor models. For those tractors not already equipped, the cover is available to keep the storage compartment and contents clean and dry.

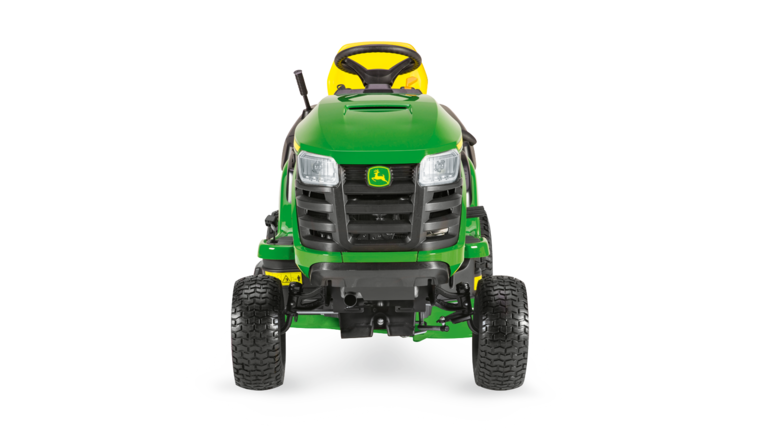

The front bumper is an optional attachment for lawn tractors.

Benefits include:

• Additional front-end protection
• A more aggressive look for the tractor

Compatibility Information



BG20944

This bumper fits 2006 and later 100 Series Tractors.

Leveling gauge allows quick and accurate mower deck leveling and cutting height adjustment.

Can be used for:

• Lawn tractors
• Lawn and garden tractors
• Riding mowers
• Front mowers
• Commercial walk-behind mowers
• Zero-turn-radius mowers

When collecting grass clippings and leaves is not desired, a mulch kit is available.



The rear hopper, mulch plug, or garden caddy rear deflector can be easily removed and the mulch plug installed.

Compatibility Information



BG20698

For X135R.

A durable cast-iron weight can be mounted to each front wheel.

These weights are recommended for use when operating on slopes, especially when the tractor is equipped with a rear grass bagger or other rear-mounted equipment.

Each weight requires BM17978 mounting hardware.

Compatibility Information



BM17962

Requires BM17978 mounting hardware.

A durable cast-iron weight can be mounted to each front wheel.

These weights are recommended for use when operating on slopes, especially when the tractor is equipped with a rear grass bagger or other rear-mounted equipment.

Each weight requires BM17978 mounting hardware.

Compatibility Information



BUC10724

Requires BM17978 mounting hardware.

Compatibility Information



TY15717

For X135R and 155R.
